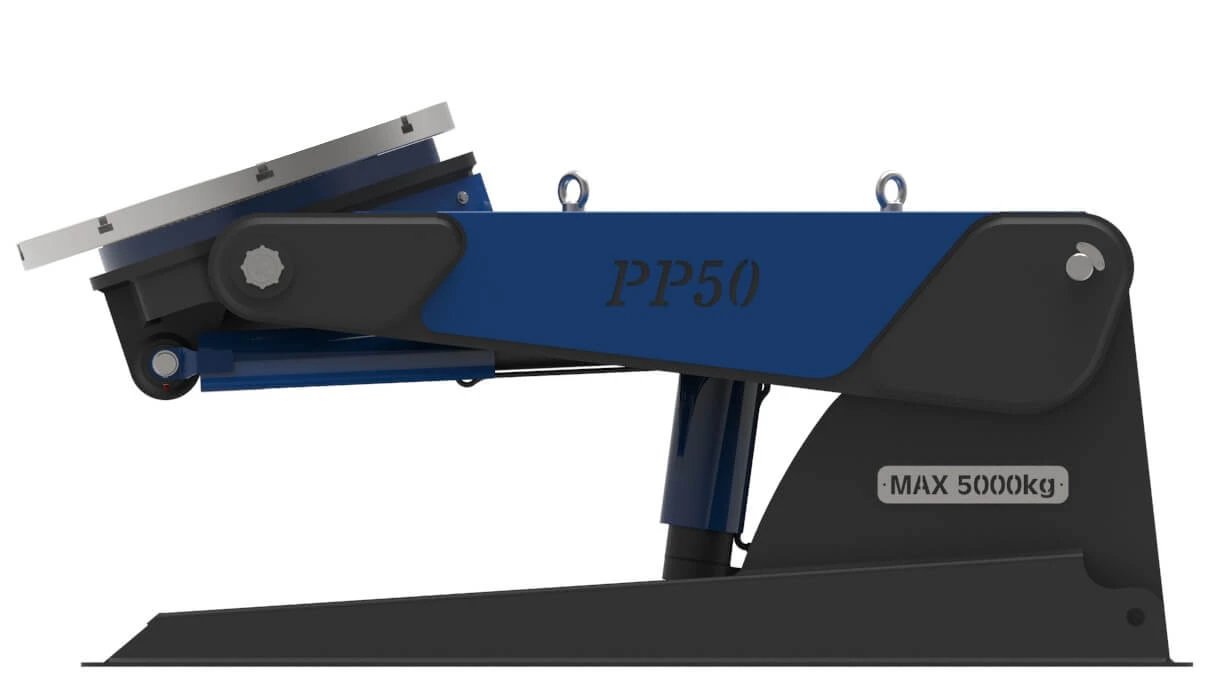

Name: Welding positioners type PP
Brand: KOVACO
SKU: PP

Bearing capacity from 800kg to 10t

A compact three-axis positioner without anchoring requirement for simpler applications. Hydraulic lift and clamping table tilt is employed for positioning of the table in manual mode. Even the basic configuration positioner features stepless adjustment of table rotation speed in its entire range and is equipped with a START-STOP system. Various optional features of the control system further expand the control capabilities of the positioner.

Compact design
No anchoring required
Hydraulic lifting and tilting of the table
Stepless table speed control with START-STOP
Optional remote control
Optional foot switch for START-STOP
Optional customization of the clamping table to customer specification

Request a quote Back to welding positioners

Specifications

Technical parameters.

Type	PP 8	PP 15	PP 30	PP 50	PP 100
Bearing Capacity (kg)	800	1,500	3,000	5,000	10,000
Table Tilting Moment (Nm)	1,700	3,000	10,000	15,000	50,000
Table Torque (Nm)	750	2,600	5,300	7,400	20,000
Table Tilting Speed (°/min)	123	215	190	175	150
Table Rotation Speed (rpm)	0.1 – 1.7	0.1 – 1.5	0.1 – 1.4	0.04 – 0.6	0.08 – 1.05
Lifting Speed (m/min)	1.2	1.7	1.1	1.1	1.1
Table Tilting Angle (°)	100	100	100	95	105
A (mm)	1,900	1,950	2,120	2,570	3,100
B (mm)	700	850	1,000	1,230	1,500
C (mm)	725	775	980	1,100	1,175
D (mm)	700	800	850	1,000	1,250
P (mm)	1,200	1,260	1,497	1,680	2,000
Z (mm)	625	660	695	800	1,100
Hmin (mm)	725	775	980	1,100	1,175
Weight (kg)	654	1,020	1,600	3,050	5,300

Type	PP 8	PP 15	PP 30	PP 50	PP 100
Bearing Capacity (lb)	1,764	3,307	6,614	11,023	22,046
Table Tilting Moment (lb-ft)	1,254	2,213	7,376	11,063	36,878
Table Torque (lb-ft)	553	1,918	3,909	5,458	14,751
Table Tilting Speed (°/min)	123	215	190	175	150
Table Rotation Speed (rpm)	0.1 – 1.7	0.1 – 1.5	0.1 – 1.4	0.04 – 0.6	0.08 – 1.05
Lifting Speed (ft/min)	3.9	5.6	3.6	3.6	3.6
Table Tilting Angle (°)	100	100	100	95	105
A (in)	74.8	76.8	83.5	101.2	122.0
B (in)	27.6	33.5	39.4	48.4	59.1
C (in)	28.5	30.5	38.6	43.3	46.3
D (in)	27.6	31.5	33.5	39.4	49.2
P (in)	47.2	49.6	58.9	66.1	78.7
Z (in)	24.6	26.0	27.4	31.5	43.3
Hmin (in)	28.5	30.5	38.6	43.3	46.3
Weight (lb)	1,442	2,249	3,527	6,724	11,684

Welding positioners type PP

Technical parameters.

Machine dimensions.

You may also need.
