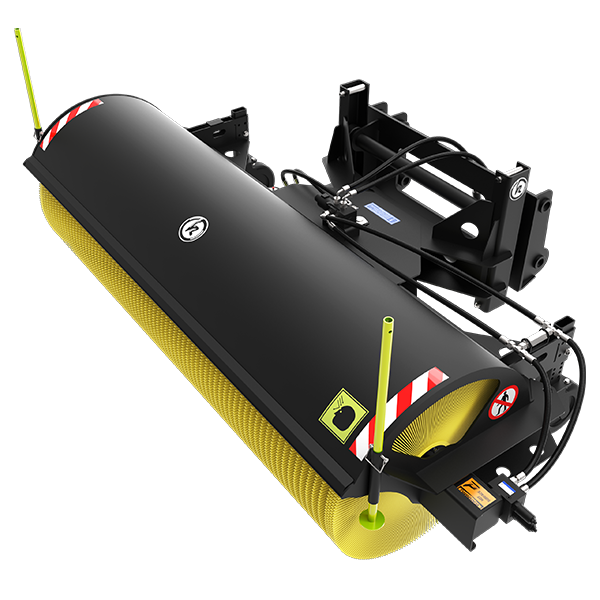

The Angle Broom allows a quick removal of dirt from various surfaces including sidewalks, driveways, parking lots and warehouses. It clears dirt, sand, wood chips and also snow, quickly and effortlessly. It replaces manual work and allows you to clean both small and large areas with minimum effort.
| Type | 63 240 | 63 260 |
|---|---|---|
| Base Machine | ||
| Working Width (mm) | 2,400 | 2,600 |
| Broom Diameter (mm) | 800 | |
| Tilting Method | manual / hydraulic | |
| Tilting Angle (°) | ±15 | |
| Required Hydraulic Oil Flow (l/min) | 50 – 90 | |
| Required Hydraulic Oil Pressure (bar) | 180 – 240 | |
| Weight (kg) | 785 | 850 |
| Weight of Base Machine (t) | 4 – 13 |
| Type | 63 240 | 63 260 |
|---|---|---|
| Base Machine | ||
| Working Width (in) | 94.5 | 102.4 |
| Broom Diameter (in) | 31.5 | |
| Tilting Method | manual / hydraulic | |
| Tilting Angle (°) | ±15 | |
| Required Hydraulic Oil Flow (US gal/min) | 13.2 – 23.8 | |
| Required Hydraulic Oil Pressure (psi) | 2,611 – 3,481 | |
| Weight (lb) | 1,731 | 1,874 |
| Weight of Base Machine (lb) | 8,818 – 28,660 |
| Type | 84 150 | 84 180 | 84 215 |
|---|---|---|---|
| Base Machine | |||
| Working Width (mm) | 1,500 | 1,800 | 2,150 |
| Broom Diameter (mm) | 600/800 | ||
| Tilting Method | manual / hydraulic | ||
| Tilting Angle (°) | ±30 | ||
| Required Hydraulic Oil Flow (l/min) | 50 – 90 | ||
| Required Hydraulic Oil Pressure (bar) | 180 – 240 | ||
| Weight (kg) | 275 | 305 | 350 |
| Weight of Base Machine (t) | 1.6 - 5 |
| Type | 84 150 | 84 180 | 84 215 |
|---|---|---|---|
| Base Machine | |||
| Working Width (in) | 59.1 | 70.9 | 84.6 |
| Broom Diameter (in) | 23.6/31.5 | ||
| Tilting Method | manual / hydraulic | ||
| Tilting Angle (°) | ±30 | ||
| Required Hydraulic Oil Flow (US gal/min) | 13.2 – 23.8 | ||
| Required Hydraulic Oil Pressure (psi) | 2,611 – 3,481 | ||
| Weight (lb) | 606 | 672 | 772 |
| Weight of Base Machine (lb) | 3,527 - 11,023 |
